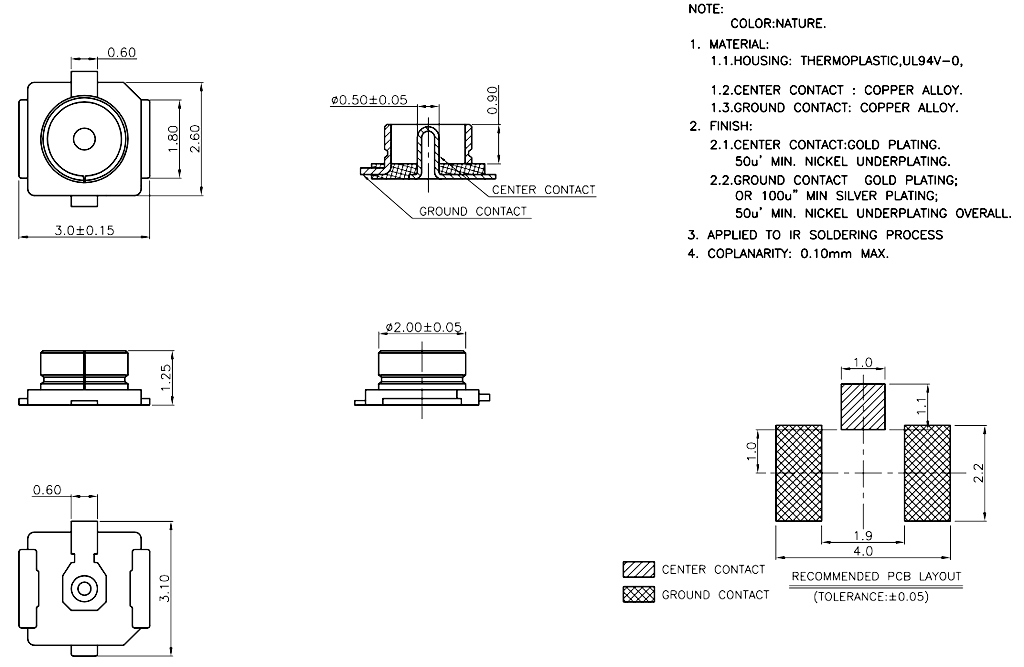

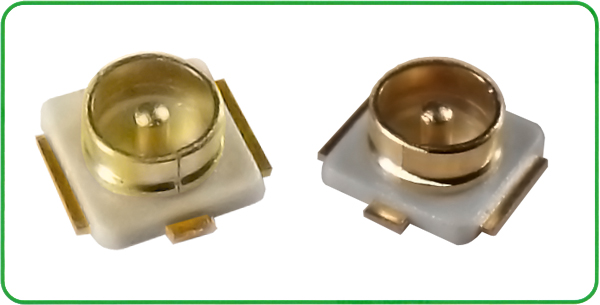

RF-001-01 RF天线端子板端母座 SMT TYPE

RF-001-01
NOTE:
     COLOR:NATURE.
         1. MATERIAL:
            1.1.HOUSING: THERMOPLASTIC,UL94V-0,
            1.2.CENTER CONTACT : COPPER ALLOY.
            1.3.GROUND CONTACT: COPPER ALLOY.
         2. FINISH:
            2.1.CENTER CONTACT:GOLD PLATING.
                               50u' MIN. NICKEL UNDERPLATING.
            2.2.GROUND CONTACT  GOLD PLATING;
                               OR 100u" MIN SILVER PLATING;
                               50u' MIN. NICKEL UNDERPLATING OVERALL.
         3. APPLIED TO IR SOLDERING PROCESS
         4. COPLANARITY: 0.10mm MAX.
